Product Overview

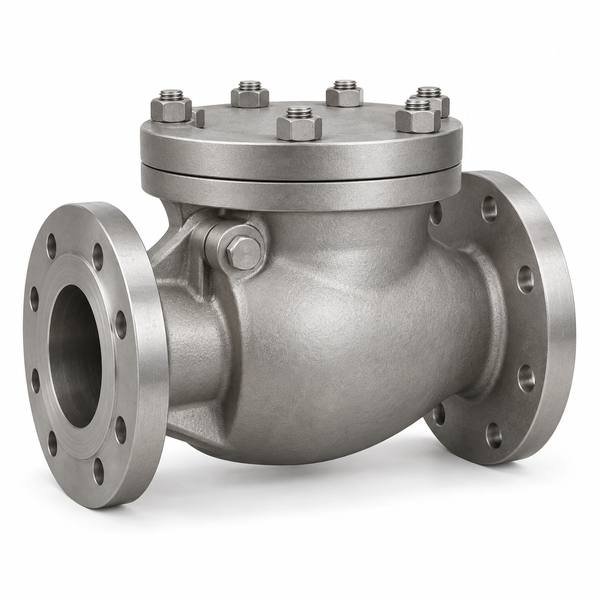

The KOZO Titanium Swing Check Valve is designed for seawater, chloride-containing and corrosive chemical systems requiring automatic backflow prevention and titanium construction.
Why Titanium?
Grade 2 / TA2 titanium is widely used in marine and chemical service because of its passive oxide film and resistance in many oxidizing and chloride-containing environments. Final suitability depends on process chemistry and the complete valve material combination.
Key Design Features
- Titanium Grade 2 / TA2 pressure-containing components.
- Swing-disc automatic non-return operation.
- Flanged or butt-weld connections.
- Project-specific seat, hinge and shaft materials.
Technical Specifications
| Тип клапана | Swing Check Valve |
|---|---|
| Материал корпуса | Titanium Grade 2 / TA2 |
| Operation | Automatic Non-Return |
| End Connection | фланцевый / Butt Weld |
| Typical Service | Seawater / Chloride / Corrosive Chemical |
Typical Applications
- Seawater cooling systems
- Desalination plants
- Chloride-containing process lines
- Chemical production
Selection Notes
Titanium can be unsuitable in some reducing environments and may be affected by galvanic coupling with dissimilar metals. Check-valve orientation and minimum flow should also be reviewed.
How to Specify
Please provide size, pressure class, medium, concentration, temperature, titanium grade, seat/disc configuration and end connection.
