Product Overview

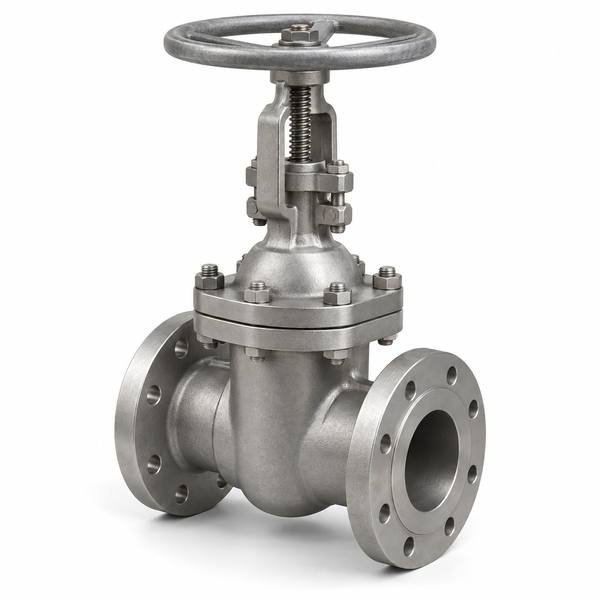

The KOZO Titanium Gate Valve is designed for on/off isolation in seawater, chloride-containing and corrosive chemical systems where titanium construction is specified. The wedge is withdrawn from the flow path when fully open to provide low flow resistance.
Why Titanium?
Commercially pure Grade 2 / TA2 titanium is widely used in marine and chemical equipment because of its passive oxide film and resistance in many oxidizing and chloride-containing environments. Titanium is not universally resistant to every reducing chemical, and galvanic interaction with dissimilar metals must be considered.
Key Design Features
- Titanium Grade 2 / TA2 body options.
- Wedge-gate straight-through isolation.
- Flanged or butt-weld connections.
- Manual or gear operation.
- Project-specific stem, seat and bolting materials.
Technical Specifications
| Tipo di valvola | Gate Valve |
|---|---|
| Body Material | Titanium Grade 2 / TA2 |
| End Connection | Flangiato / Saldatura di testa |
| Operation | Handwheel / Ingranaggio |
| Typical Service | Seawater / Chloride / Corrosive Chemical |
Typical Applications
- Seawater intake and discharge
- Desalination plants
- Chemical production
- Chloride-containing process systems
Selection Notes
The entire valve material list should be reviewed, including stem, wedge, posto a sedere, packing, gasket and bolting. Avoid blanket temperature claims based only on titanium body capability.
How to Specify
Please provide size, pressure class, medium, concentration, temperature, titanium grade, trim, end connection and operator.
