Product Overview

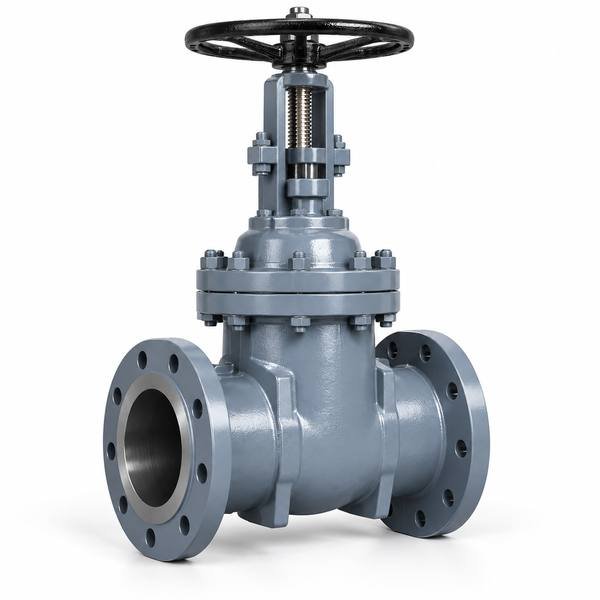

The KOZO WCB Slab Gate Valve is designed for pipeline isolation where a full-opening or through-conduit style bore and low flow restriction are required. The slab gate moves vertically between seats while the bore remains aligned with the pipeline in the open position.
Key Design Features
- Slab-gate / through-conduit style construction.
- Low pressure drop in the full-open position.
- ASTM A216 WCB reference body.
- Gear operation for larger sizes.
- Flanged pipeline connection options.
Technical Specifications
| Valve Type | Slab Gate Valve |
|---|---|
| Reference Body Material | ASTM A216 WCB |
| Reference Size | DN350 |
| Reference Pressure | PN16 |
| Operation | Bevel Gear |
| Typical Service | Pipeline Isolation |
Typical Applications
- Oil and gas pipelines
- Transmission systems
- Large-diameter industrial lines
- Services requiring low restriction when open
Selection Notes
Seat design, cavity-pressure relief, drain/vent arrangement, bore size and pigging requirements should be confirmed for the actual pipeline. A slab-gate valve is not intended for throttling.
How to Specify
Please provide DN, PN/Class, medium, full-bore requirement, body/trim material, connection, operator, pigging requirement and applicable pipeline standards.
