Product Overview

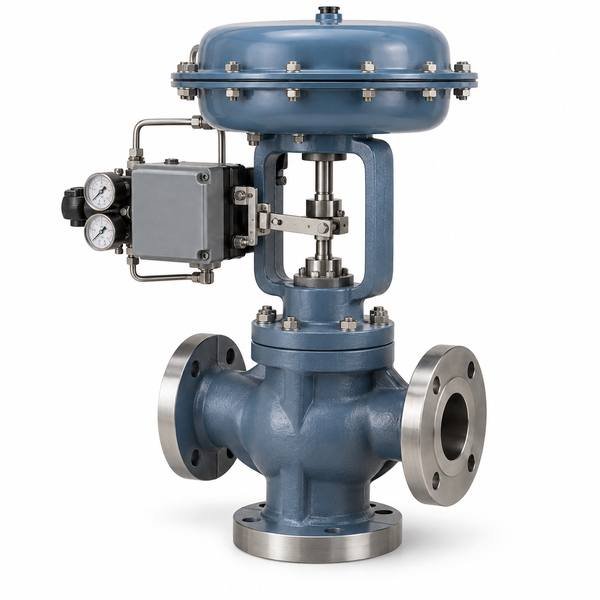

The KOZO 3-Way Globe Control Valve is designed for mixing or diverting flow in industrial process systems. A linear-motion plug and stem regulate flow through three ports, allowing two inlet streams to be combined or one inlet stream to be divided between two outlets.
Mixing and Diverting Functions
Mixing: two inlet streams are combined into one outlet.
Diverting: one inlet stream is distributed between two outlets.
Key Design Features
- Linear-motion control trim: Suitable for modulating service.
- Three-port body: Supports mixing or diverting arrangements.
- WCB body: Reference cast carbon-steel construction.
- Actuator options: Pneumatic or electric actuation according to control duty.
- Positioner compatibility: Digital or analog positioners can be supplied.
Technical Specifications
| ประเภทวาล์ว | 3-Way Globe Control Valve |
|---|---|
| Body Material | ASTM A216 WCB |
| Size Range | DN15 – DN600 |
| Pressure Classes | ASME Class 150 – 600 |
| Design Standard | ASME B16.34 |
| Control Standard | IEC 60534 / ISA 75.03 |
| Seat Leakage | IEC 60534-4 / ANSI FCI 70-2 according to trim |
| Function | Mixing / Diverting |
| การกระตุ้น | นิวเมติก / ไฟฟ้า |
Typical Applications
- Heat-exchanger circuits
- Temperature-control loops
- Mixing or bypass control
- Steam and hot-water systems
- Industrial process utilities
How to Specify This Valve
Please provide required Cv, flow rate, inlet/outlet pressures, medium, อุณหภูมิ, mixing/diverting duty, fail position, actuator preference and control signal.
คำถามที่พบบ่อย
What is the difference between mixing and diverting?
Mixing combines two streams into one. Diverting sends one inlet stream to one of two outlets or proportionally to both.
