Product Overview

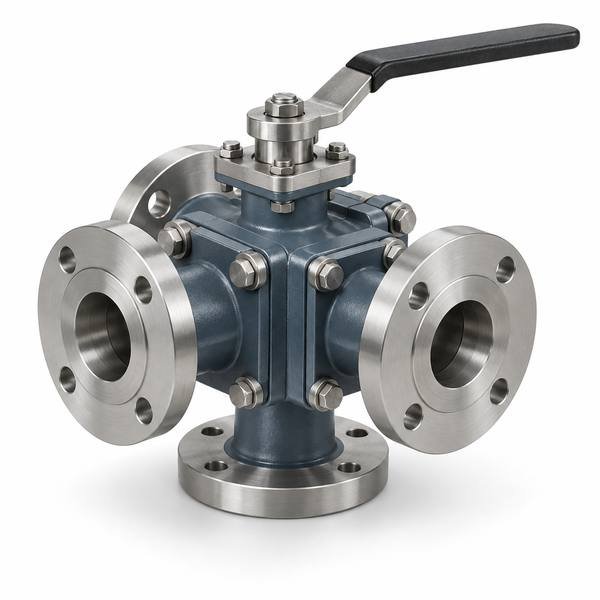

The KOZO 4-Way Ball Valve Series is designed for process systems that require multiple flow-routing positions in a single compact rotary valve. By changing the internal ball port geometry, one valve can perform switching, crossover, bypass or routing functions that might otherwise require several two-way valves.
Key Design Features
- Four process ports in one valve body.
- Quarter-turn or multi-position rotary operation.
- Project-specific internal flow path.
- יָדָנִי, pneumatic or electric actuation options.
- Body and seat materials selected according to service conditions.
Typical Configuration Fields
| סוג שסתום | 4-Way Ball Valve |
|---|---|
| Function | Multi-Port Switching / Routing / Crossover |
| Port Arrangement | Project-Specific |
| הפעלה | יָדָנִי / פּנֵאוֹמָטִי / חַשׁמַלִי |
| Materials | Selected According to Service |
Typical Applications
- Tank transfer and manifold systems
- Process switching
- Filter or heat-exchanger bypass arrangements
- Utility routing
- Compact skid systems
Selection Notes
A 4-way valve cannot be selected correctly without a flow-path diagram. Required positions, allowable blocked ports, pressure class, seat material and actuator stop positions should all be confirmed before quotation.
How to Specify
Please provide size, pressure class, required flow diagram for each valve position, medium, טֶמפֶּרָטוּרָה, body/seat materials, end connections, actuator and control logic.
שאלות נפוצות
Is every 4-way ball valve internally the same?
No. Internal port geometry can vary significantly, so the required routing diagram must be agreed before manufacturing.
