Product Overview

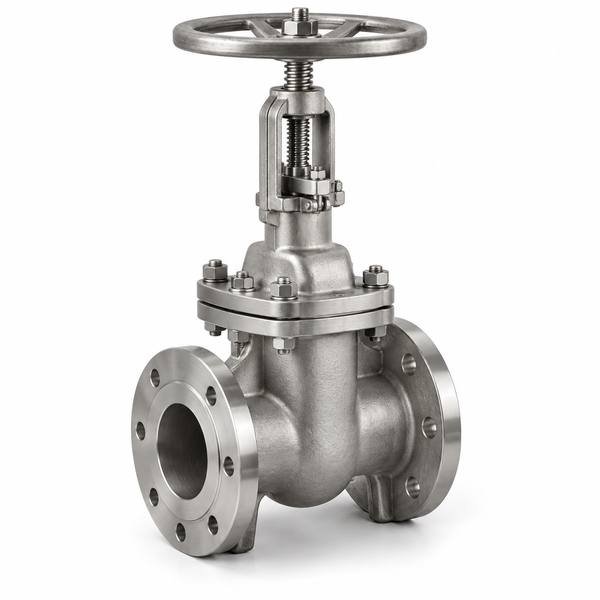

The KOZO DIN 1.4408 Stainless Steel Gate Valve is designed for European-standard industrial piping systems requiring stainless-steel construction and full-bore isolation. وقتی کاملا باز است, the wedge is lifted out of the flow path to provide low flow resistance.
Key Design Features
- DIN/EN design: Built around European dimensional and testing standards.
- 1.4408 stainless-steel body: Suitable for many water, chemical and industrial process applications where compatible.
- Wedge gate: Straight-through flow path for on/off isolation.
- Wide size and pressure range: DN32–DN1200, PN10–PN160 family.
- Flanged or welded configurations: Connection options according to project requirements.
مشخصات فنی
| نوع سوپاپ | Wedge Gate Valve |
|---|---|
| Body Material | EN 1.4408 فولاد ضد زنگ |
| Size Range | DN32 – DN1200 |
| Pressure Ratings | PN10 – PN160 |
| Design Standard | EN 10434 |
| Face-to-Face | EN 558-1 |
| Flange Standard | EN 1092-1 |
| Butt-Weld Ends | EN 12627 where applicable |
| بازرسی & Testing | EN 12266-1 |
Typical Applications
- Industrial water systems
- Chemical process piping
- Utility systems
- European-standard process plants
Selection Notes
Operating temperature depends on pressure rating, trim, packing and the complete valve design. Material grade alone should not be used to define the full service envelope.
How to Specify This Valve
Please provide DN, پ.ن, medium, design pressure, design temperature, connection type, trim, operator and applicable EN standards.
