Product Overview

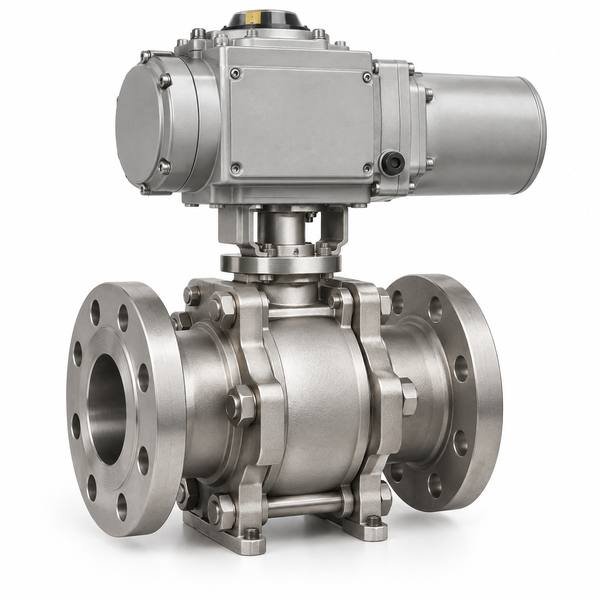

The KOZO CD4MCU Super Duplex Electric Trunnion Ball Valve is intended for corrosive industrial process and water service where a high-alloy cast duplex material and motorized quarter-turn isolation are required. The reference configuration is DN350 PN25 with RPTFE seat and electric actuator.
Key Design Features
- Trunnion-mounted ball for large-size torque control.
- CD4MCU duplex/super-duplex family body material.
- RPTFE soft-seat reference configuration.
- Electric actuator for remote operation.
- Split-body construction.
مشخصات فنی
| Valve Type | Electric Trunnion Ball Valve |
|---|---|
| Reference Size | DN350 |
| Reference Pressure | PN25 |
| Body Material | CD4MCU Duplex Stainless Steel |
| صندلی | RPTFE |
| End Connection | RF Flanged |
| Actuation | برقی |
| Design Standard | API 6D |
| بازرسی & Testing | API 598 |
Typical Applications
- Corrosive water systems
- Chemical process piping
- Industrial utility systems
- Large-bore remote isolation
Selection Notes
Operating temperature must be based on the RPTFE grade, packing, trim and actuator environment. Material PREN or certification claims should only be stated where supported by actual material documents.
How to Specify This Valve
Please provide size, PN/Class, medium, دما, seat/trim, actuator voltage/control, fail strategy, accessories and certification requirements.
